Seed3 Pedal Dev Kit¶
Technical Specs¶
Hardware Parameters
- Stereo audio I/O
- DIN MIDI IO
- Expression input
- USB-C port
- SD card slot for firmware updates, samples, configurable options, and more
- 6 potentiometers (10K-B)
- 2 footswitches, 2 tactile switches
- 3 toggle switches (ON-OFF-ON and ON-ON)
- 1 RGB LED, 1 Red LED
- 9V DC barrel jack

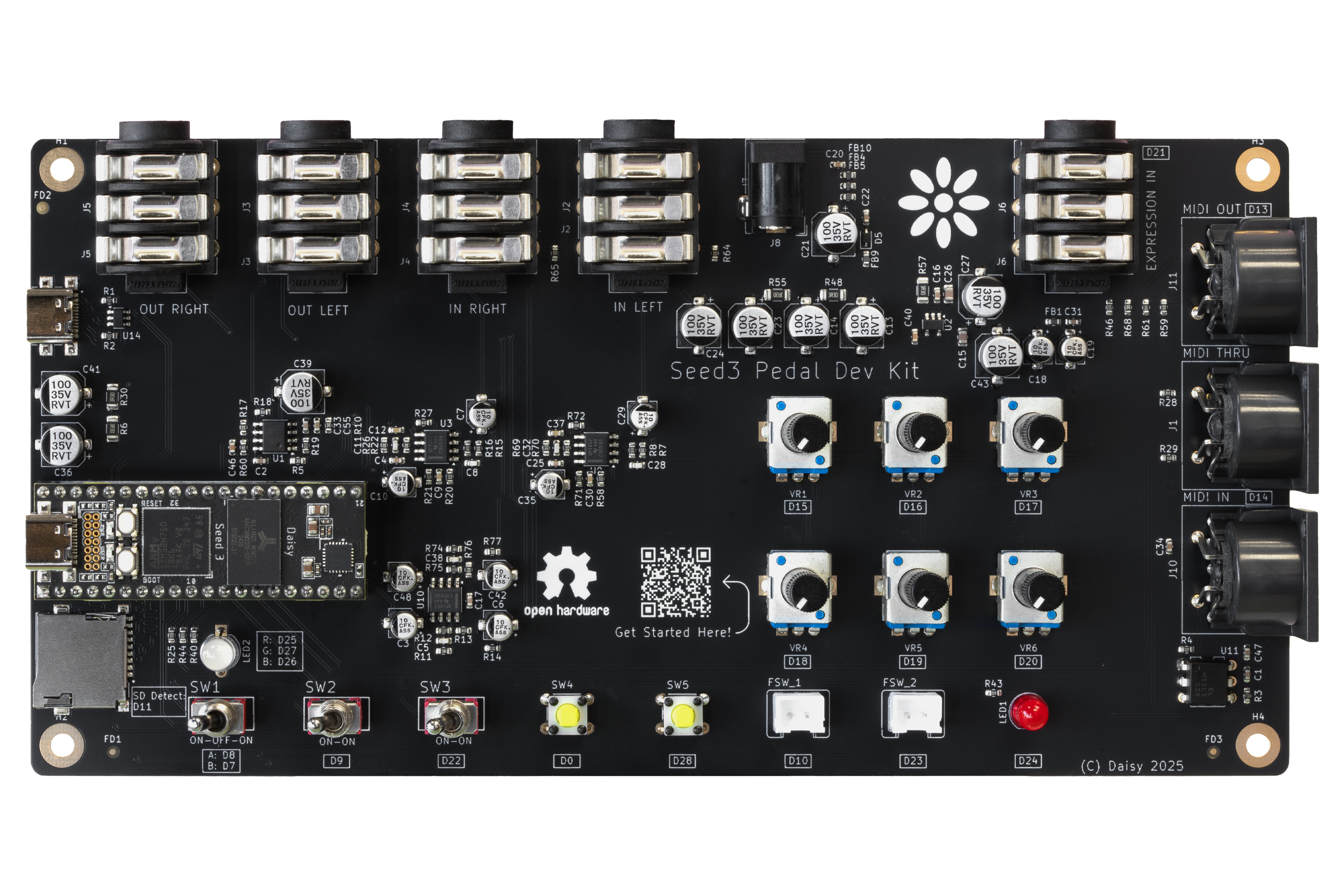

The Seed 3 Pedal Development Kit provides everything you need to design and prototype your next Daisy-based effects pedal on a single, bespoke board. Create powerful DSP effects, from massive reverbs, delay networks, and complex loopers to spectral processors and granular synthesis, the likes which have yet to grace the pedal world.
With industry standard components and circuitry onboard, integrating Daisy into the production line has never been easier. On top of stereo IO and a host of electromechanical parameters, the Dev Kit also includes DIN MIDI IO, and expression TRS input, microSD socket, and a USB-C port. Take your DSP effect pedals to the next level, with Daisy.
Assets¶
Pinout PDF Schematic PDF BOM KiCad Design Files
The Pedal Dev Kit is open-source hardware, and carries essential circuitry to employ Daisy for effects pedal applications. Use the BOM, schematics, and board files to kickstart your own pedal designs.
The Seed 3 Pedal Dev Kit is licensed under MIT as permissive open-source hardware. This means that:
- designers have the freedom to use, study, modify, share and distribute hardware designs and products based on those designs.
- designers may use any and all provided designs in close-sourced, commercial products.

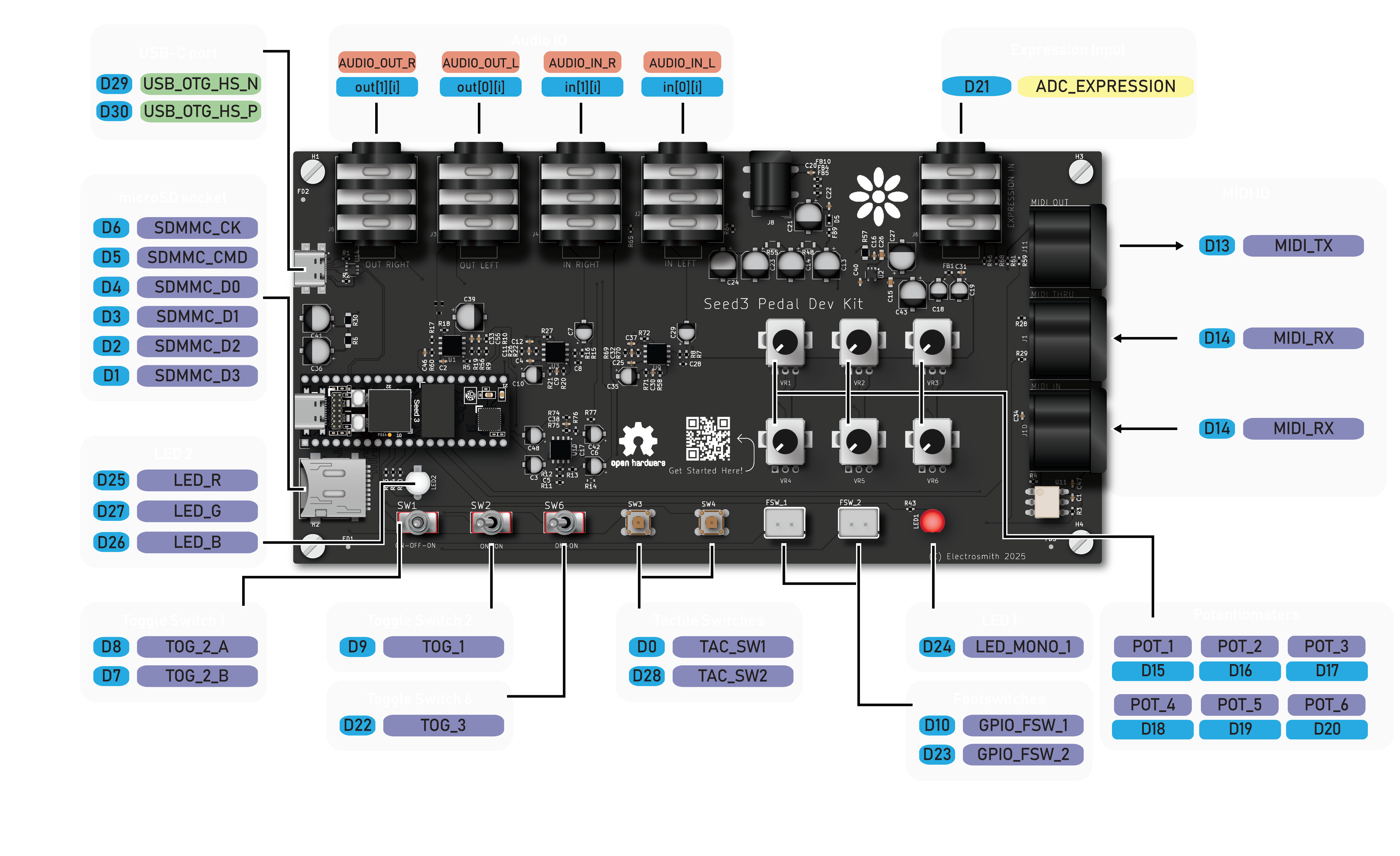

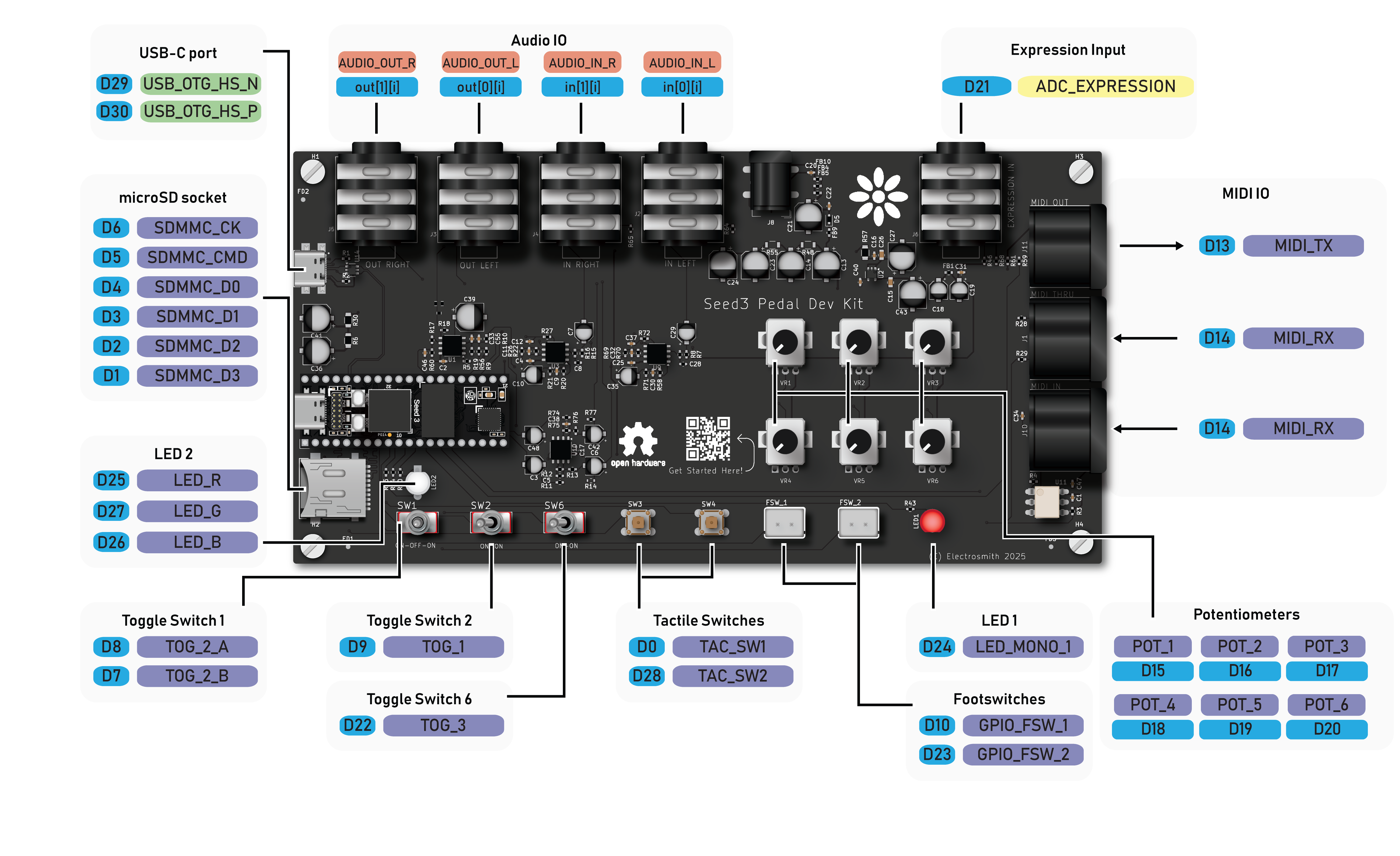

Pinout¶
