Seed3¶
Technical Specs¶
- ARM Cortex-M7 MCU, Running at 480MHz
- 192kHz/32-Bit Stereo Audio Hardware
- 65MB of RAM (Up to 10 minute long audio buffers)
- 8MB of Flash Memory
- GPIO x31
- 16-Bit ADC x14
- 12-Bit DAC x2
- USB-C port
Description

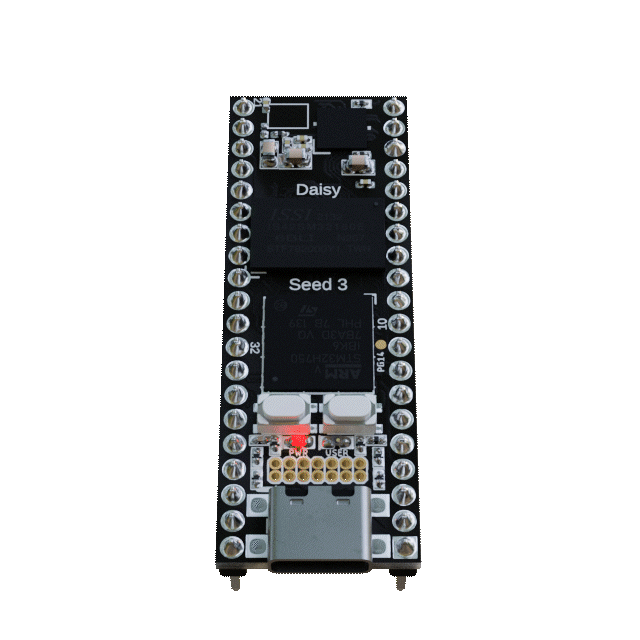

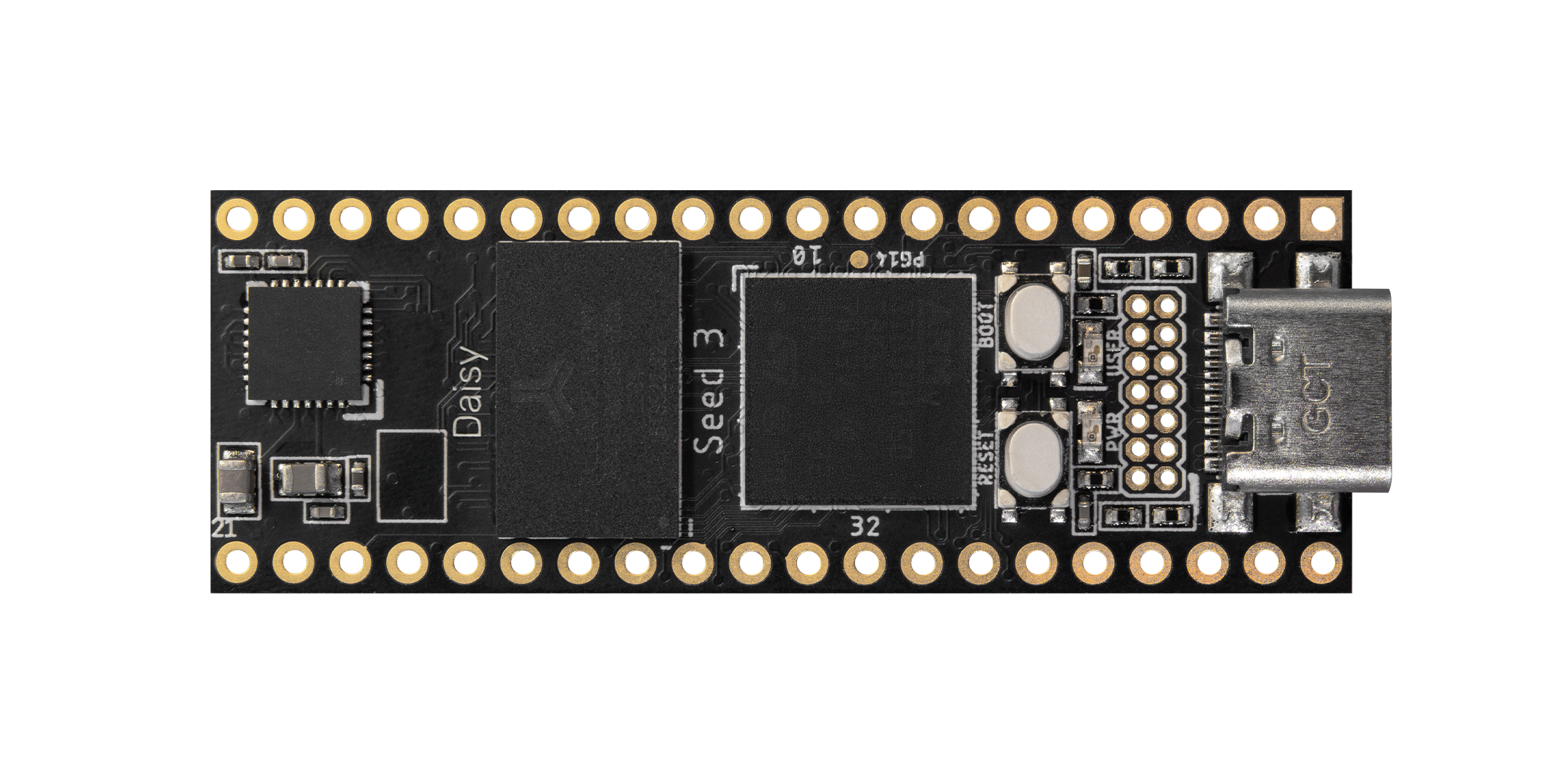

Seed3 is the next generation of Daisy hardware. It features a new audio codec boosting audio fidelity to 32-bit, 192kHz, for a crystal clear audio experience. The Seed 3 also carries an onboard USB-C port for data transfer and powering. All this while maintaining pin-to-pin compatibility with the original Seed pinout and footprint. Prototype today, and ship tomorrow. The Seed3 is both breadboard-ready and designed with commercial applications in mind.Assets¶
Technical Documents¶
Datasheet Pinout PDF Pinout CSV FCC Documentation
CAD Files¶

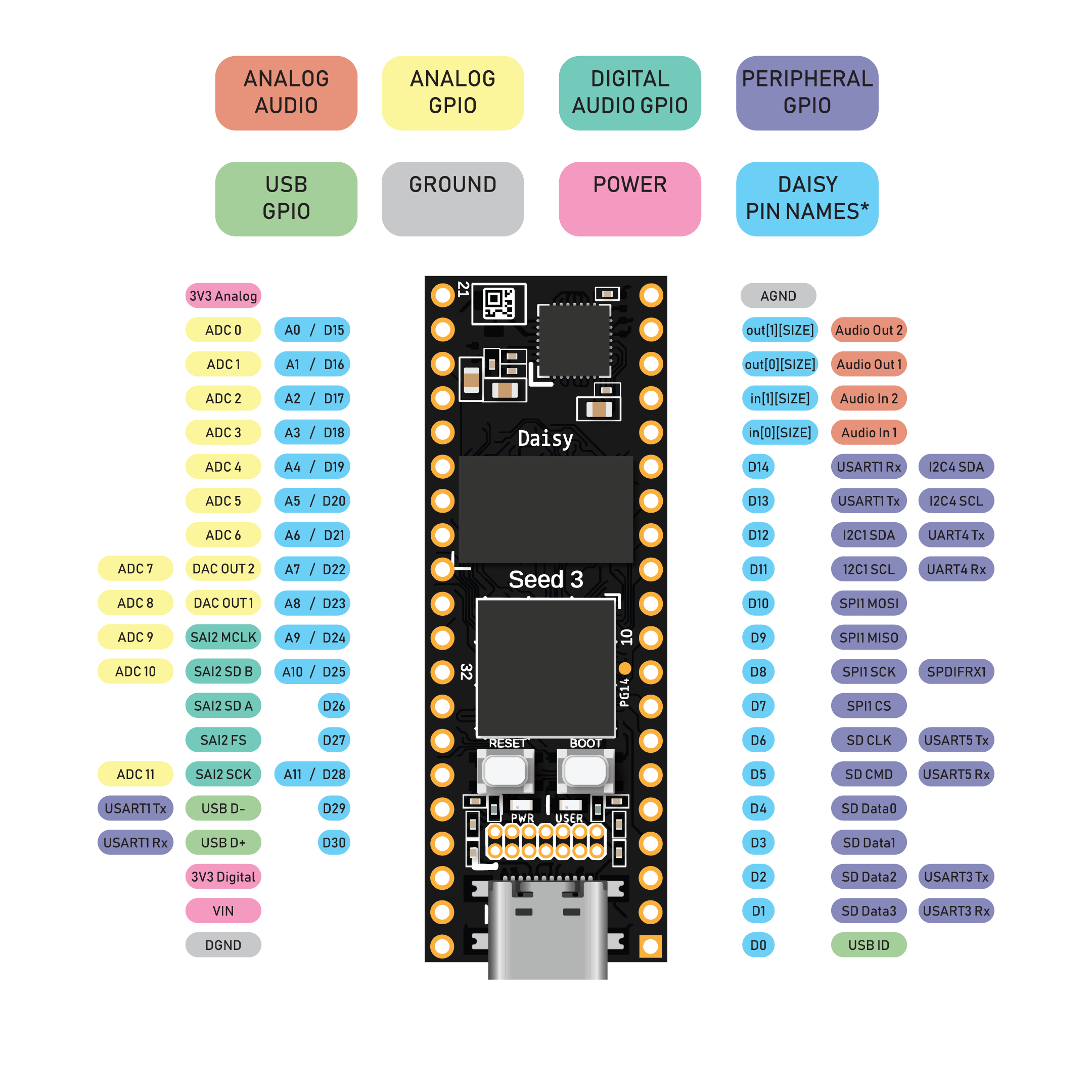

Pinout¶
